CREATE RADAR CHART IN EXCEL


WHAT IS RADAR CHART? HOW TO CREATE RADAR CHART IN EXCEL ?

INTRODUCTION



CHARTS are the graphic representation of any data . EXCEL provide us a number of visualization options in the form of different charts and graphs etc.

EXCEL gives us a variety of charts which are beautiful, colorful, more customizable and more powerful.

In this article we are going to discuss one particular type of the charts which are known as RADAR CHART.

A RADAR CHART IS A SPECIAL TYPE OF CHART IN THE SHAPE OF A STAR WITH DIFFERENT VARIABLES OR PARAMETERS REPRESENTED ON THE AXES ARISING FROM THE SAME CENTER AND VALUES ARE PUT ON THE AXES.

In RADAR CHARTS, the values are shown on different axes.

We’ll discuss in detail, the information about the RADAR CHART and the way to create one in EXCEL.




WHAT IS A RADAR CHART

A RADAR CHART is a chart in the form of a star or a polygon with different parameters plotted on the axes which arise from a center and the values are shown on the axes. The values are then joined to the adjacent axes with the simple lines.

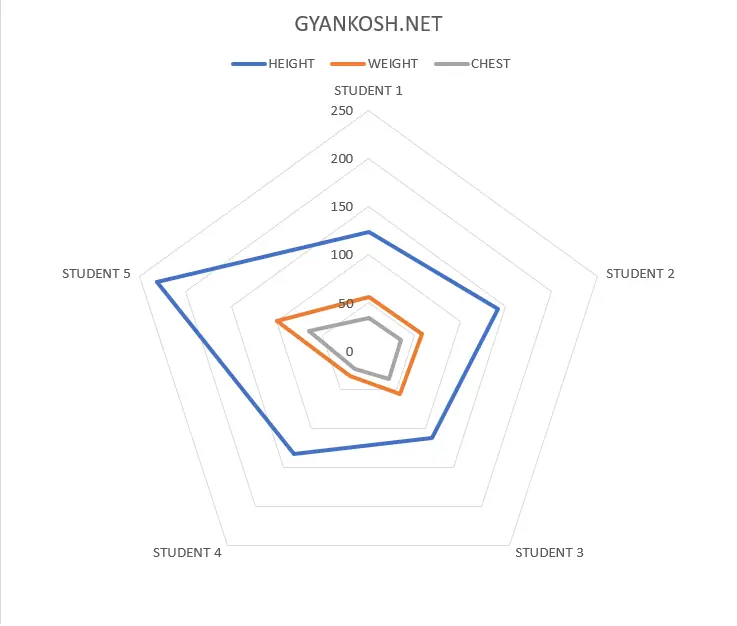

A sample RADAR CHART is shown below.


WHAT IS RADAR CHART? HOW TO CREATE RADAR CHART IN EXCEL ?
RADAR CHART

[LOOK AT THE PICTURE ABOVE]

A RADAR CHART has the different axes arising from a single point as it is clear in the chart above, all the axes are arising from 0.

The variable which are the height, weight and chest are marked for each and every student on respective axes.

After marking, all the values are joined together to form a polygon.

The radar chart is known by many other names such as

STAR CHART, STAR PLOT, COBWEB CHART, POLYGON CHART, POLAR CHART AND KIVIAT DIAGRAM ETC.

In the next section, we take a look upon the different apt situations where we can make use of RADAR CHARTS.

One star represent the variation among different series.



WHEN DO WE NEED RADAR CHARTS

A RADAR CHARTS should be used when

  • We want to represent a data with multiple variables. For example , the details of students’ height, weight and chest as shown in the picture above.
  • When we want to visually know the contribution of a parameter in a glance for every reading.
  •  We want to represent the PERFORMANCE METRICS showing the strengths and weaknesses.
  •  For Quality Control programs.

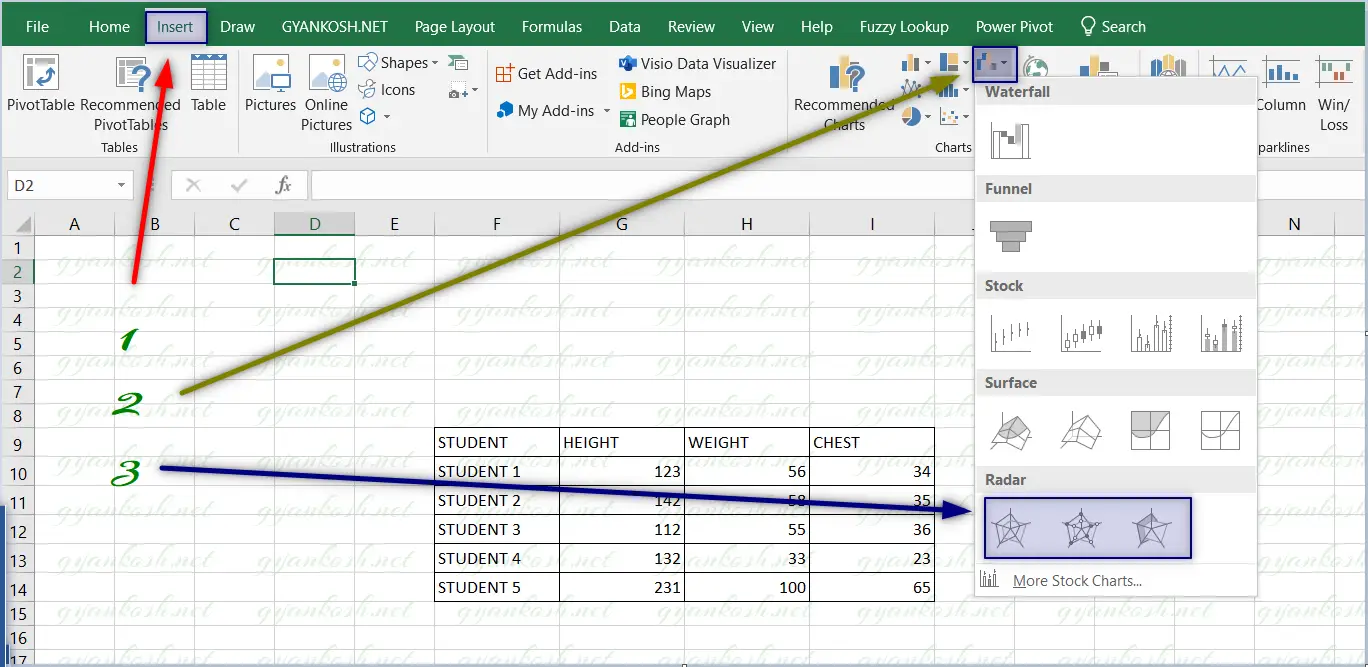

BUTTON LOCATION FOR INSERTING A RADAR CHART IN EXCEL

The RADAR CHART can be inserted through the INSERT MENU > CHART and choosing RADAR chart or by directly choosing the CHART BUTTON on the toolbar and then choosing the RADAR chart.

RADAR CHART BUTTON ON TOOLBAR

  • The chart button is situated on the right portion.
  • Click the button. Chart Editor will open. [1]
  • Choose the RADAR CHART from the CHART TYPE DROP DOWN.[2]
  • Click the RADAR CHART option.[3]
WHAT IS RADAR CHART? HOW TO CREATE RADAR CHART IN EXCEL ?
SELECT INSERT TAB AND CHOOSE RADAR CHARTS FROM WATERFALL CHART BUTTON



STEPS TO SET UP THE DATA FOR RADAR CHARTS

It is always easy to create a chart if we lay down the data properly.

Similarly, for the RADAR CHARTS it is important to know the layout of the data for the perfect chart , as we require.

The FIRST COLUMN can be used to provide the LABELS. These will form axes.

The FIRST ROW will contain the CATEGORIES. These will be plotted on the axes and joined with each other to form a radar chart.

OTHER COLUMNS can be used to enter values.

A sample of the table and the radar chart for the table are shown below.

STUDENT HEIGHT WEIGHT CHEST
STUDENT 1 123 56 34
STUDENT 2 142 58 35
STUDENT 3 112 55 36
STUDENT 4 132 33 23
STUDENT 5 231 100 65

The RADAR CHART for the data is shown below. The steps to create the chart are discussed in the next section.



WHAT IS RADAR CHART? HOW TO CREATE RADAR CHART IN EXCEL ?
RADAR CHART

The radar chart is known by many other names such as

STAR CHART, STAR PLOT, COBWEB CHART, POLYGON CHART, POLAR CHART AND KIVIAT DIAGRAM ETC.

In the next section, we take a look upon the different apt situations where we can make use of RADAR CHARTS.




STEPS TO INSERT A RADAR CHART IN EXCEL

EXAMPLE DETAILS


We can demonstrate the chart using an example.
We are taking the example of a class where we see the variation of height, weight and chest of students.
[ The example is just for the learning purpose. It may not represent an apt situation to use radar chart.
Refer to the section WHEN DO WE NEED RADAR CHARTS for learning the situations where we can use RADAR CHARTS.

STUDENT HEIGHT WEIGHT CHEST
STUDENT 1 123 56 34
STUDENT 2 142 58 35
STUDENT 3 112 55 36
STUDENT 4 132 33 23
STUDENT 5 231 100 65


The procedure to insert a RADAR chart are as follows:

STEPS TO INSERT A RADAR CHART IN EXCEL:

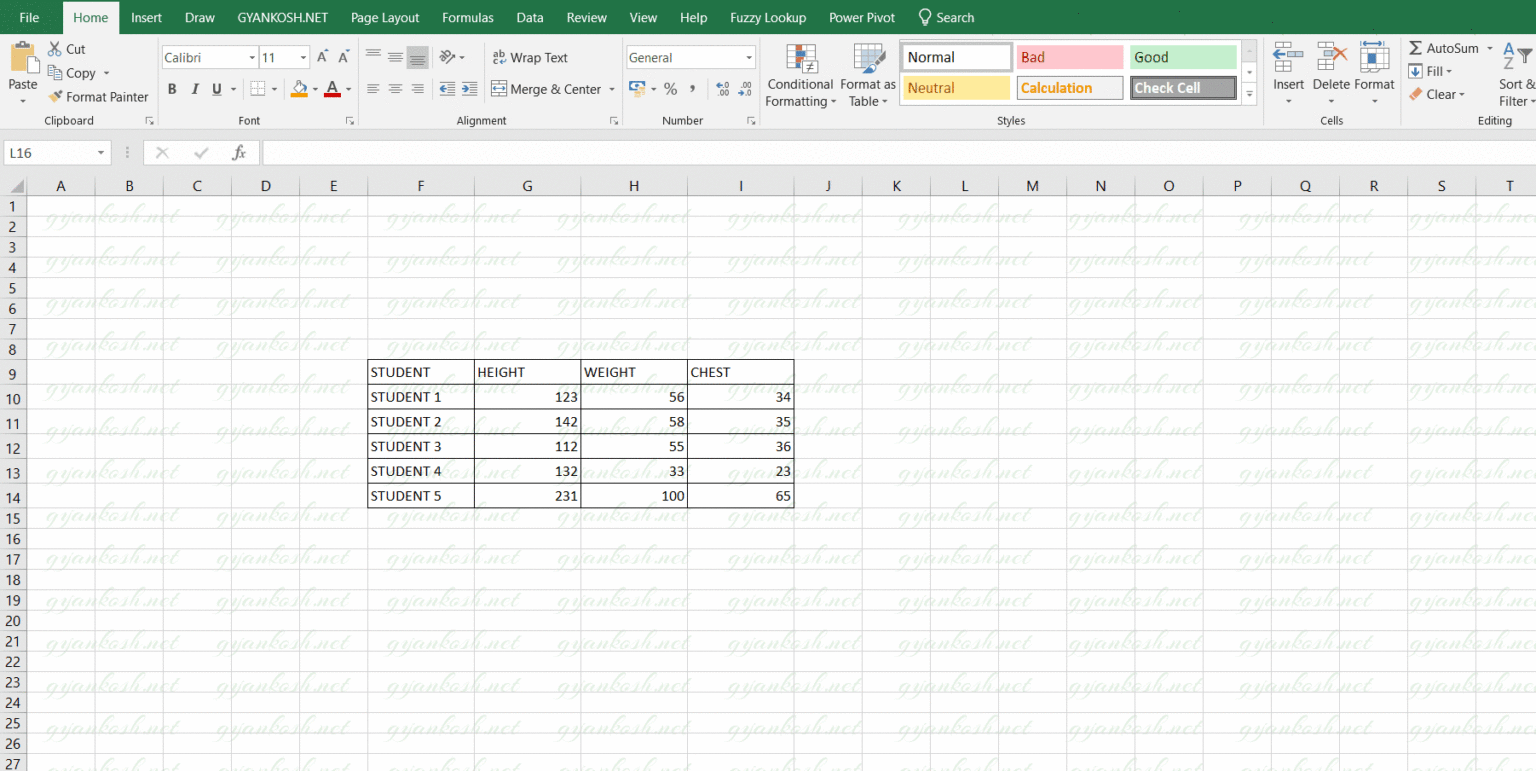

  • The first requirement of any chart is data .  So create a table containing the data.  [ We have already created in the form of table above]
  • Refer to our data above, where we have mentioned the weight, height and chest size of five students.
  • Select the complete table including the HEADER NAMES.
  • Go to INSERT TAB >  CHARTS SECTION > INSERT WATERFALL, FUNNEL, STOCK, SURFACE, OR RADAR CHART AND CHOOSE RADAR CHART .
  • The chart will be created and shown to you as the following picture



WHAT IS RADAR CHART? HOW TO CREATE RADAR CHART IN EXCEL ?
STEPS TO CREATE A RADAR CHART IN EXCEL

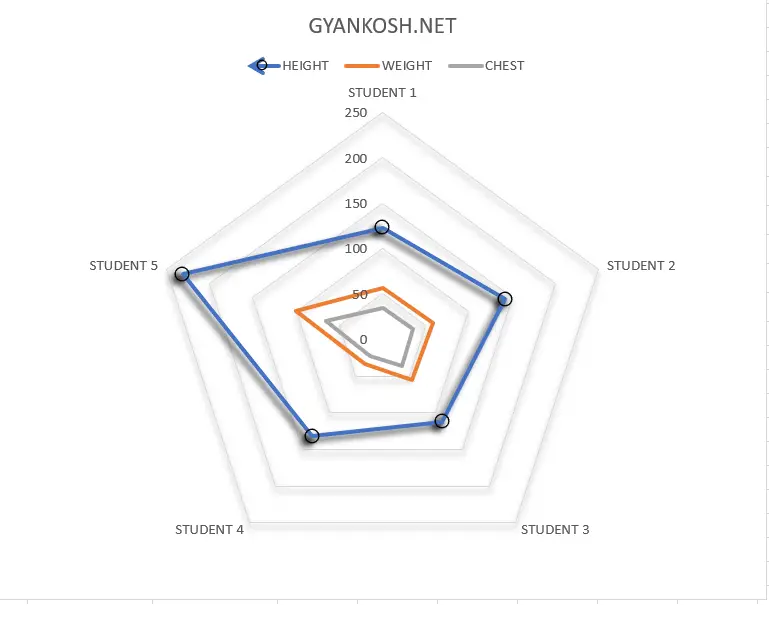

The final created chart is shown below.


WHAT IS RADAR CHART? HOW TO CREATE RADAR CHART IN EXCEL ?
FINAL RADAR CHART
